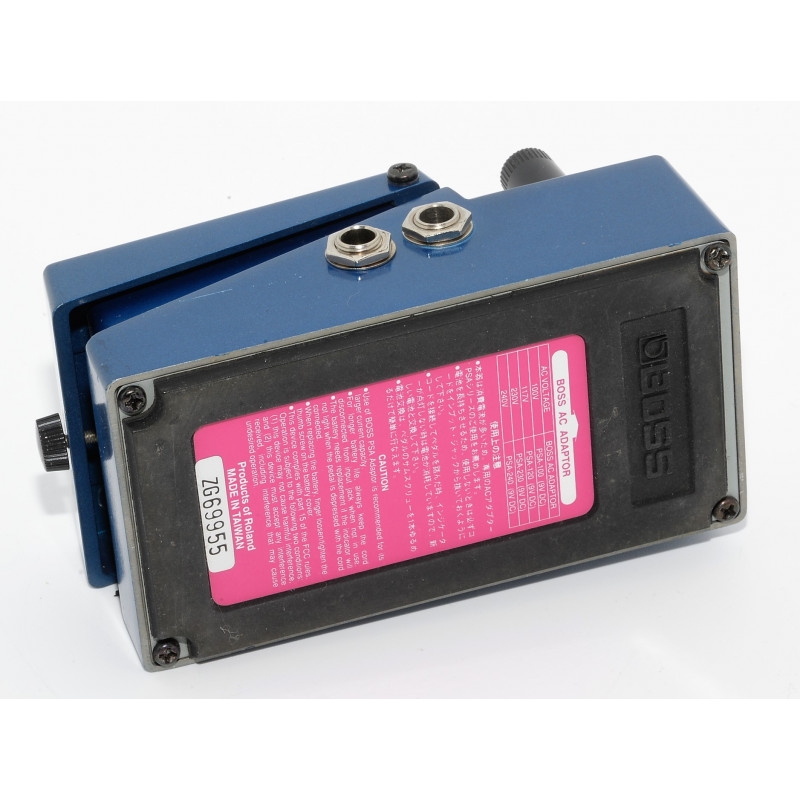

PEDAL BOSS PS-3 PITCH SHIFTER/DELAY

Modes

• Delay, 32ms – 125ms
• Delay, 125ms – 500ms
• Delay, 500ms – 2000ms
• Detune, adds a slightly pitch-shifted sound to the input sound to create a detune effect
• Fast Pitch Shift, very little delay in pitch shifted sound. Good for slightly shifted sounds.
• Slow Pitch Shift, more delay in pitch shifted sound but very accurate. Good for greatly shifted sounds.
• Inverse Pitch Shift, a mode where the pitch shifted sounds are reversed
• Detune & Detune, adds two slightly pitch shifted sounds to the input signal to create a fat detuned effect.
• Detune & Pitch Shift, detune output from Output A and Pitch Shifted sound from Output B
• Pitch Shift & Pitch Shift, Pitch shifted sounds from both output. Pitch A controls Output A and Ptch B controls Output B
• Expression, A connected expression pedal will set the pitch shift between Pitch A and Pitch B

Specifications

• Controls: Balance, Feedback, Pitch, 11-way Mode switch
• Connectors: Input, Expression Pedal, Output A, Output B, AC Adaptor
• Current Draw: 70 mA (DC 9V)
• Recommended AC Adaptor: PSA Series
