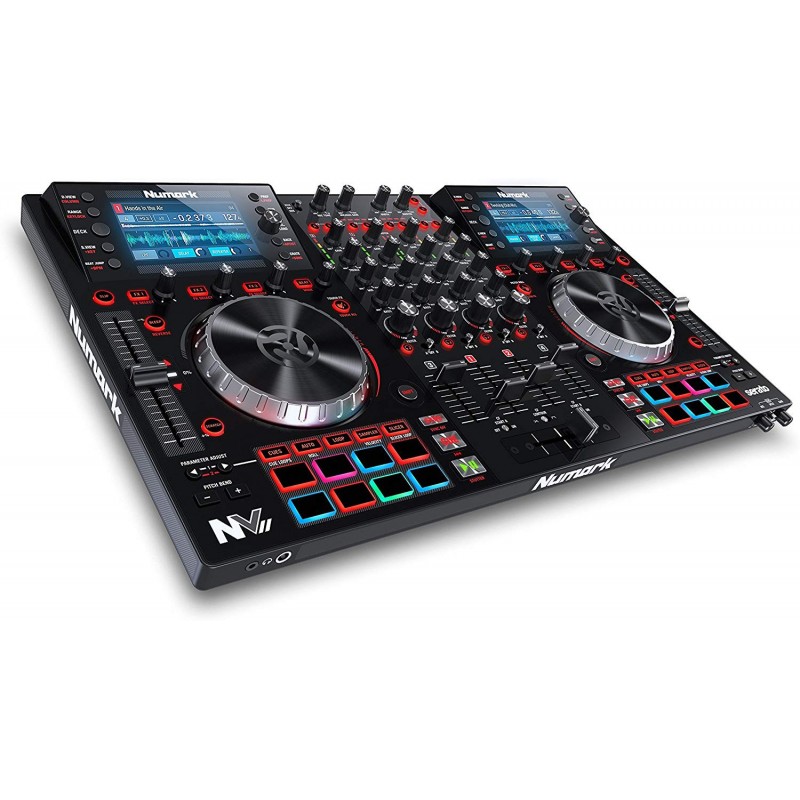

CONTROLADORA NUMARK NV II

Supported Operating Systems:

• Windows 7 and up
• Mac OS X 10.8 and up

Connections:

• 1 RCA stereo input pair, unbalanced (line-level)
• 1 1/4" (6.35 mm) TRS input (microphone, direct to Master Outputs)
• 2 XLR outputs, balanced (Master)
• 2 RCA stereo output pairs, unbalanced (Master, Booth)
• 1 1/4" (6.35 mm) TRS output (headphones)
• 1 1/8" (3.5 mm) TRS output (headphones)
• 1 USB port

Output Level:

• 2.25 Vrms (100% Master Volume)
• 1.19 Vrms (80% Master Volume)

Signal-to-Noise Ratio -112 dB

• (100% Master Volume, A-weighted)
• 111 dB (80% Master Volume, A-weighted)
• 109 dB (100% Master Volume, unweighted)
• 108 dB (80% Master Volume, unweighted)

Total Harmonic Distortion + Noise

• 0.005% (100% Master Volume)
• 0.002% (80% Master Volume)

Sample Rate

• 44.1 kHz

Bit Depth

• 16-bit

Power

• 12 V DC, 2 A, center-positive; power adapter included

Dimensions (width x depth x height)

• 21.6" x 13.4" x 2.1"

Weight

• 3,5 kg

Note: Intel Processors are required for use with Serato DJ Software
