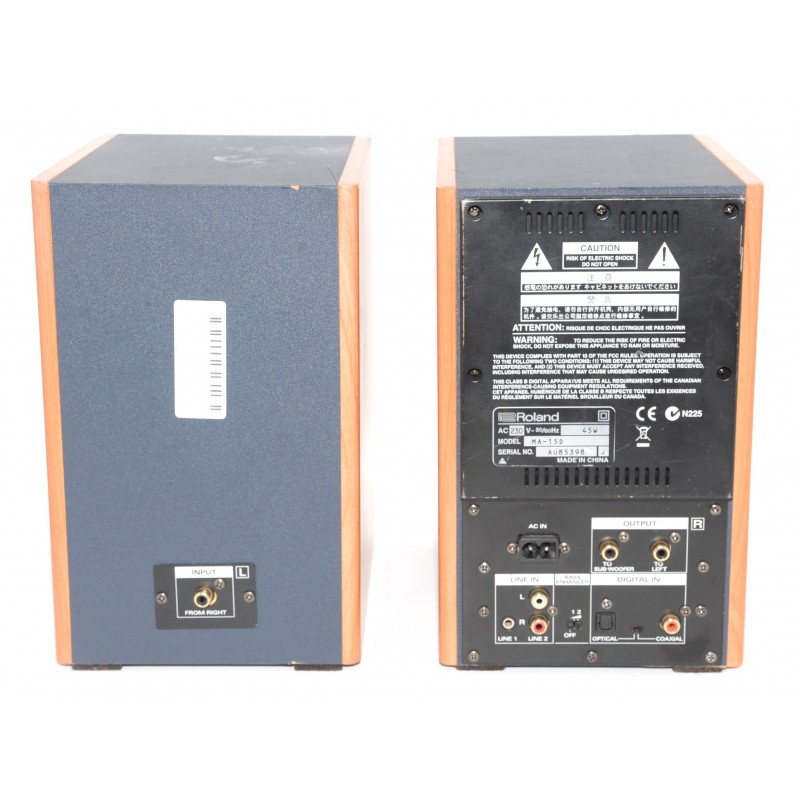

ALTAVOCES ESTUDIO ROLAND MA-15D

RATED POWER OUTPUT 30 W (15 W + 15 W)

SPEAKER UNITSWoofer10 cm (3-15/16") (Magnetically-Shielded)Tweeter5 cm (2") (Magnetically-Shielded)

FREQUENCY RANGE70 Hz to 20 kHz

NOMINAL INPUT LEVELLine 1-10 dBuLine 2-10 dBu

INPUT IMPEDANCE20 k ohms

CONTROLSR Channel FrontBASS Control Knob
TREBLE Control Knob
VOLUME Knob x 2
VOLUME 1 (digital input + line 1)
VOLUME 2 (RCA phono)
POWER SwitchR Channel Rear

BASS ENHANCER Switch
Digital Input Select Switch

CONNECTORSR Channel FrontPhones Jack (stereo 1/4" phone type)R Channel RearLine 1 Jacks (L, R) (stereo mini type)
Line 2 Jacks (L, R) (RCA phono type)
L Channel Output Jack (RCA phono type)

DIGITAL INPUT SECTIONSampling Rate32 kHz
44.1 kHz
48 kHz
96 kHz
192 kHzD/A Converter24 bits

OTHERS

Enclosure2-way Bass-reflex type (Wooden Cabinet)

Indicator Power Indicator

Power SupplyAC 117 V, AC 220V, AC 230 V or AC 240 V: 50/60 HzCurrent Consumption45 WAccessoriesOwner's Manual
Speaker Cable (RCA phono type)
Conversion cable(Stereo Mini-RCA Pin)
Power Cord
Rubber Foot x 4

SIZE AND WEIGHT ( RIGHT )Width159 mm6-5/16 inchesDepth222 mm8-3/4 inchesHeight250 mm9-7/8 inchesWeight5.0 kg11 lbs. 1 oz.

SIZE AND WEIGHT ( LEFT )Width159 mm6-5/16 inchesDepth215 mm8-1/2 inchesHeight250 mm9-7/8 inchesWeight2.5 kg5 lbs. 9 oz.
